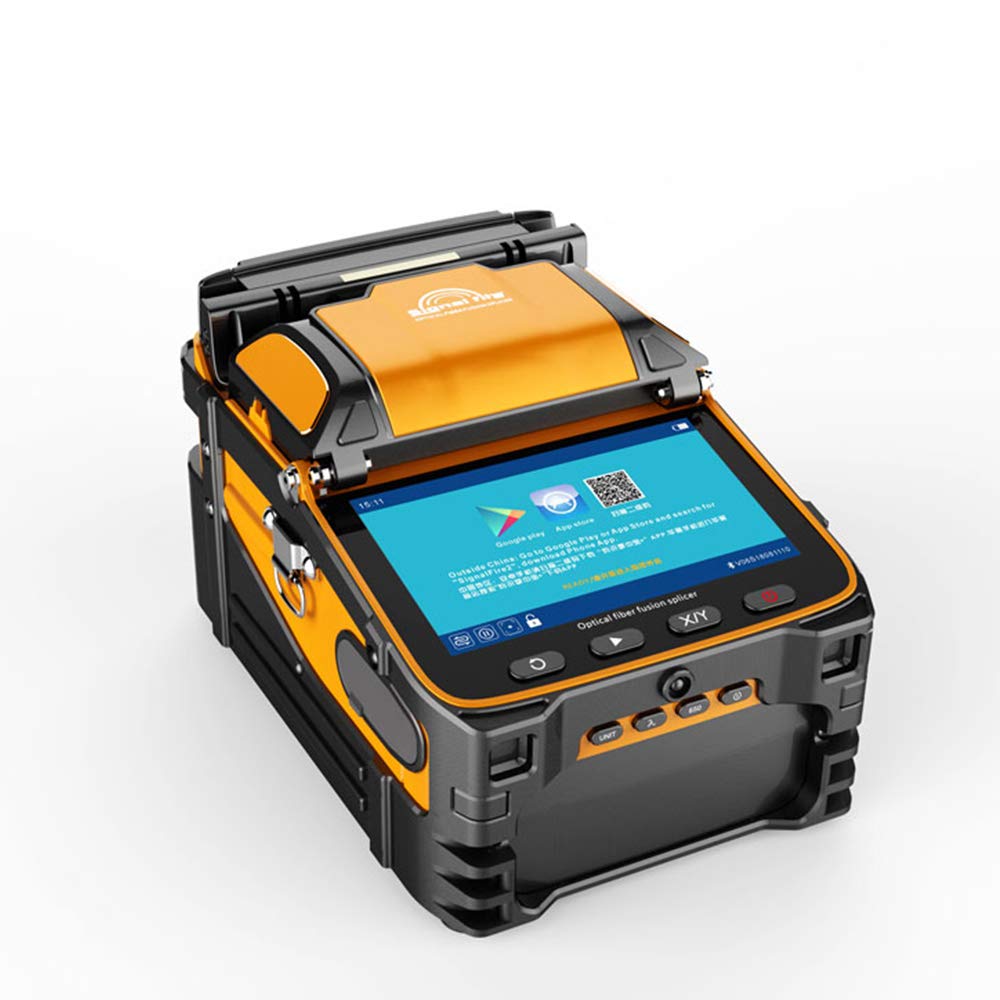

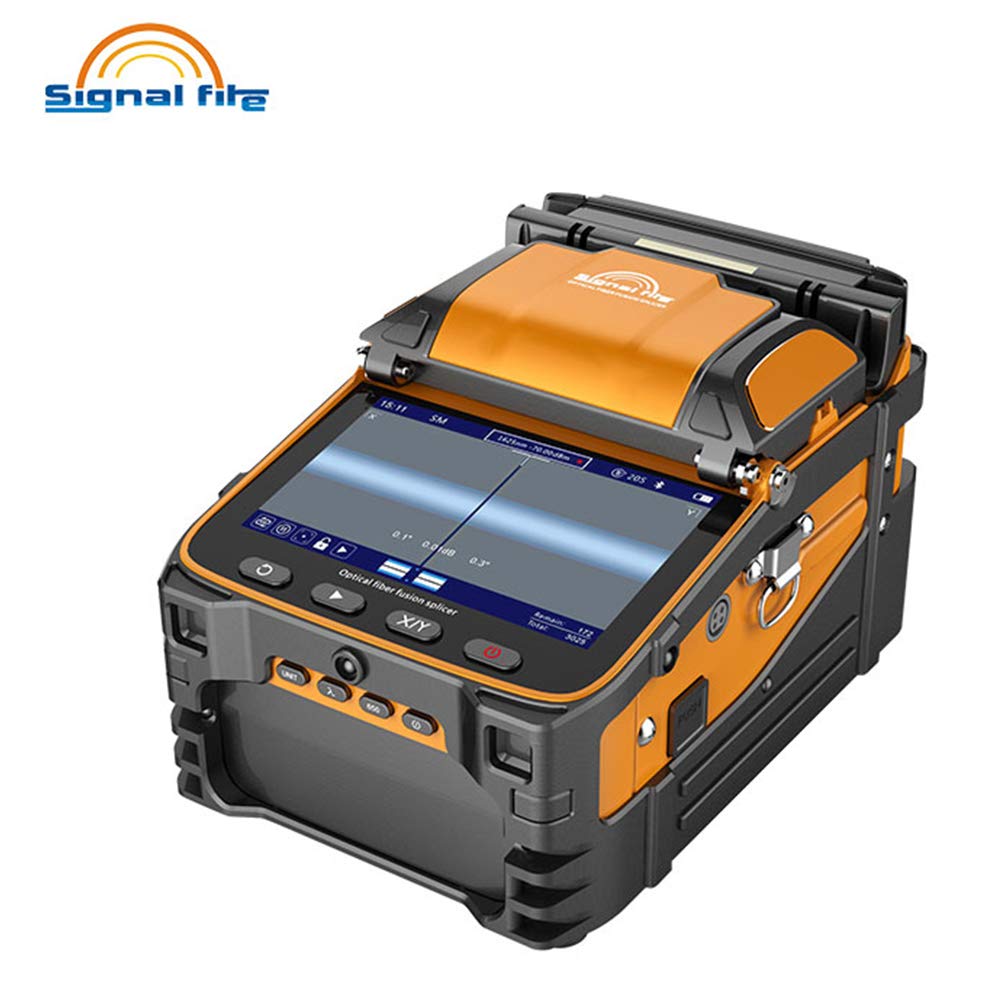

Optical Fiber Fusion Splicer with Cleaver FTTH Kit Q1677
Optical Fiber Fusion Splicer with Cleaver FTTH Kit Q1677
With 5-inch 800X480 high-resolution screen, is up to 300 times focus magnifications, making it easy to observe the fiber with naked eyes;5s fast splicing 15s fast heating,the working efficiency increased by 50% compared to ordinary splicing machines.
3 In 1 Fiber Holder suit for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable;Splice Loss:0.025dB(SM)、0.01dB(MM)、0.04dB(DS/NZDS);Fiber diameter:Cladding Diameter：80-150μm、Coating Diameter：100-1000μm;Fiber Cleave Length:Coating less than 250µm：8-16mm、Coating less than 250-1000µm:16mm.
Built-In power meter (Wavelength 850nm/1300nm/1310nm/1490nm/1550nm/1625nm); Built-in Visual Fault Locator:Power:15mw,2hz flashing And Constantly Bright Mode.
Configure it on the phone app,splicing is easy to operate.10 Languages to switch freely :English,french,Russion,Italian,Portuguese,Polish,Spanish,Thai,Arabic. splicing record storage, synchronize to the phone, the server to cloud storage unlimited.
It is especially suitable for optical fiber and cable projects, maintenance scientific research, railway, petrochemical, electric power, military and public security and other communications fields.
Parameter characteristics:
1.Fiber alignment:Core/cladding alignment / Manual alignment
2.Splicing time:5S,Heating time:15S
3.Heating mode:Automatic heating（Preheating）
4.Focus mode:Six motors Auto focus
5.Screen:5 inch TFT color display
6.Magnification:300 for X or Y view, 150 for X or Y view
7.Splicing Mode:Normal / high precision splicing
8.Splicing method:Fully automatic、Step by step splicing
9.10 Languages to switch freely :English,french,Russion,Italian, Portuguese, Polish,Spanish,Thai,Arabic
10.Built-in Optical Power Meter:Wavelength:850nm、1300nm、1310nm、1490nm、1550nm、1625nm Measuring Range:-70 ~ +6db Absolute Error:<0.3db(-50dbm ~ +3dbm Range).
11.Built-in Visual Fault Locator:Power:15mw,2hz flashing And Constantly Bright Mode.
12.Built-in battery:7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours,continuous splicing and heating about 200 times.

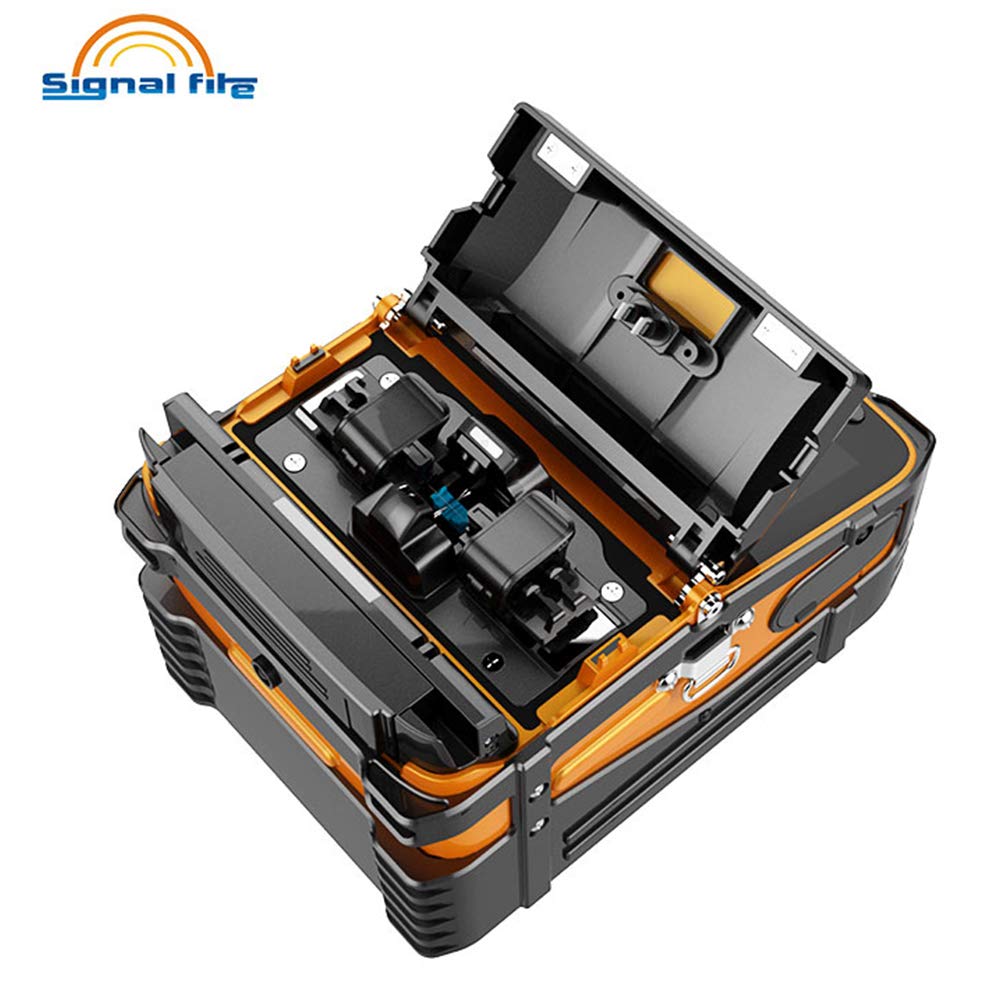

13.Fiber holders:3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable.
14.Applicable Fibers:SM(G.652&G.657)、MM(G.651)、DS(G.657)、NZDS(G.655).Splice Loss:0.025dB(SM)、0.01dB(MM)、0.04dB(DS/NZDS).
15.Return loss:Better than 60DB.Shrinkable tube:60mm、50mm、40mm、25mm.
16.Fiber diameter:Cladding Diameter：80-150μm、Coating Diameter：100-1000μm.
17.Fiber Cleave Length:Coating less than 250µm：8-16mm、Coating less than 250-1000µm:16mm.
18.Control technology:Real-time control and calibration of fusion ARC.
19.Splicing record storage:Synchronize to the phone, the server to cloud storage unlimited.
20.Software updates Length:Automatically update、 Update by a key.Boot time:1 second.
21.Power supply:Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified, real-time detection of battery power.
22.Operating Conditions:Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation) Working altitude: 0 ～ 5000m. Resist max. wind speed: ≤ 15m / s
